Panel-HMI

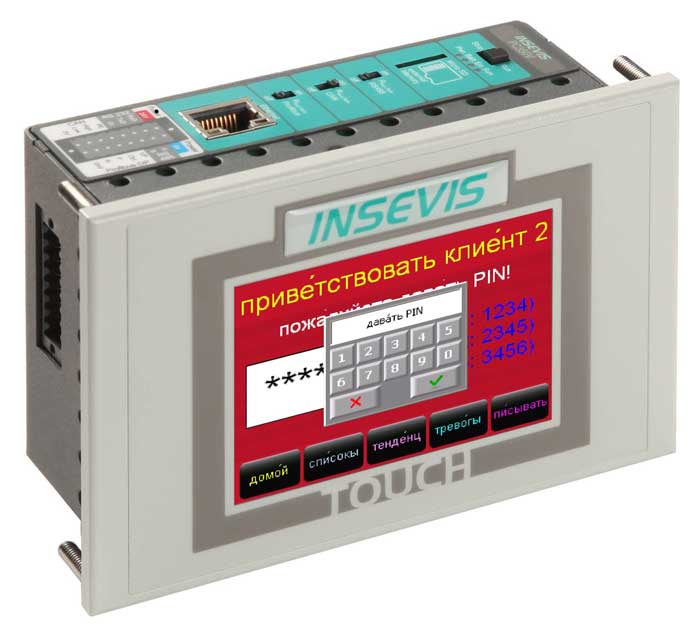

✅ The HMI350 is a S7-HMI-Panel, 3.5" with 320x240 resolution.
A small but incredibly brilliant image and extremely compact dimensions favor this S7 HMI as an additional display and operating device in the S7 control network. Low power losses of 100 mA 24 VDC and a wide temperature range allow a wide range of applications for this smallest INSEVIS panel. The excellent intuitive quality impression is more than just a promise; even the smallest of the INSEVIS panels are robust and durable. The connection to Siemens CPUs is made via an S7 connection with Put/Get.

• Panel-PLC with TFT-color touch display 3,5“ TFT (320x240 pixel)
• Ethernet as 2-port switch S7-connection (Put/Get)
• IP-addresses in HMI-BIOS to communicate with Siemens-CPUs
• Micro-SD slot for Micro-SD-cards up to 8GB
• Status LEDs for Power, Battery, Error, Run
• Inserting stripes for Logo and ident (customized adaption possible)
• Scope of delivery: mounting set with technical information / instruction

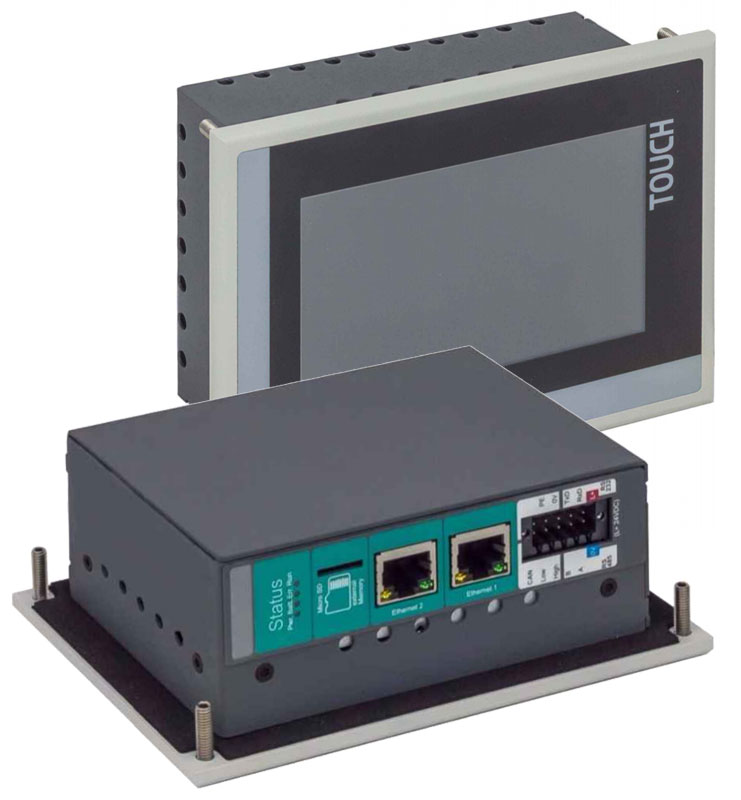

✅ The HMI430T is a S7-HMI 4.3″ with 480×272 px and 4-way VNC server.
This small, high-resolution HMI in 16:9 format is only 25 mm thick! Its fast CPU and large visualization memory of 48 MB make it ideal for small displays and archiving huge amounts of data. It has a wide range of functions, e.g. unlimited languages. The IP65 density class allows a very wide range of applications for this extremely fast panel as an S7 HMI. Even this smallest S7 HMI with CPU-T has an integrated 4-way VNC server and can therefore be integrated in the Siemens Sm@rtClient, for example. The EDGE version of the HMI430T with OPC UA, MQTT, NodeRED, openVPN and automatically generated web visualization.

• Panel-PLC with TFT-color touch display 4,3“ TFT (480×272 px)
• Ethernet as 2-port switch S7-connection (Put/Get)
• IP-addresses in HMI-BIOS to communicate with Siemens-CPUs
• Micro-SD slot for Micro-SD-cards up to 8GB
• Status LEDs for Power, Battery, Error, Run
• Inserting stripes for Logo and ident (customized adaption possible)
• Scope of delivery: mounting set with technical information / instruction

✅ The HMI570 is a 5.7″ Panel with 320×240 px resolution.
Anyone who misses the 6" TP/MP177 panels from Siemens will get a modern, Ethernet-capable replacement with this S7-HMI. And the creation of the visualization is also nothing new for users of Siemens-WinCCflexible. Many functions have been solved particularly simply and can be carried out intuitively. Integrated are, among other things, a fault reporting system, 64 trend channels, recipe and user management and much more. Unlimited languages and easy updateability via micro SD cards and much more.

• Panel-PLC with TFT-color touch display 5.7“ TFT (320x240 pixel)
• Ethernet as 2-port switch S7-connection (Put/Get)
• IP-addresses in HMI-BIOS to communicate with Siemens-CPUs
• Micro-SD slot for Micro-SD-cards up to 8GB
• Status LEDs for Power, Battery, Error, Run
• Inserting stripes for Logo and ident (customized adaption possible)
• Scope of delivery: mounting set with technical information / instruction

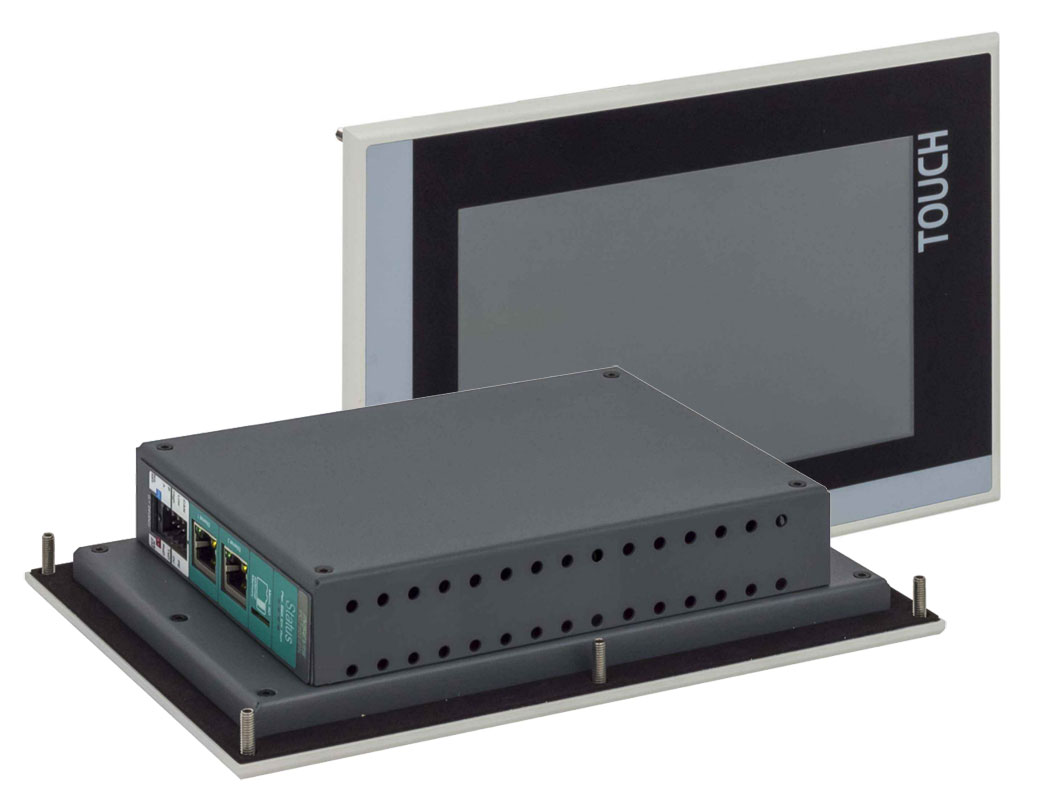

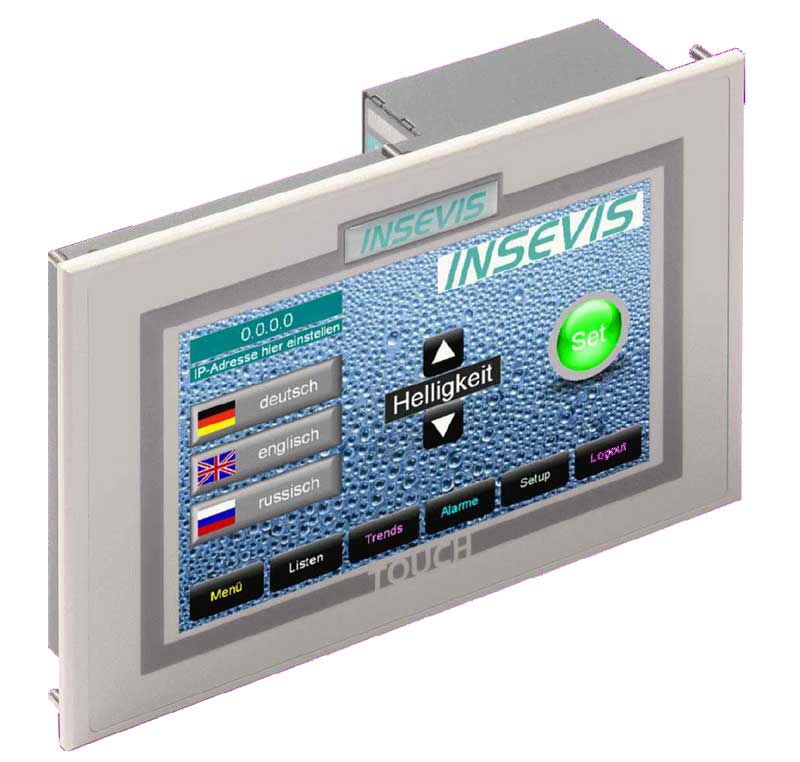

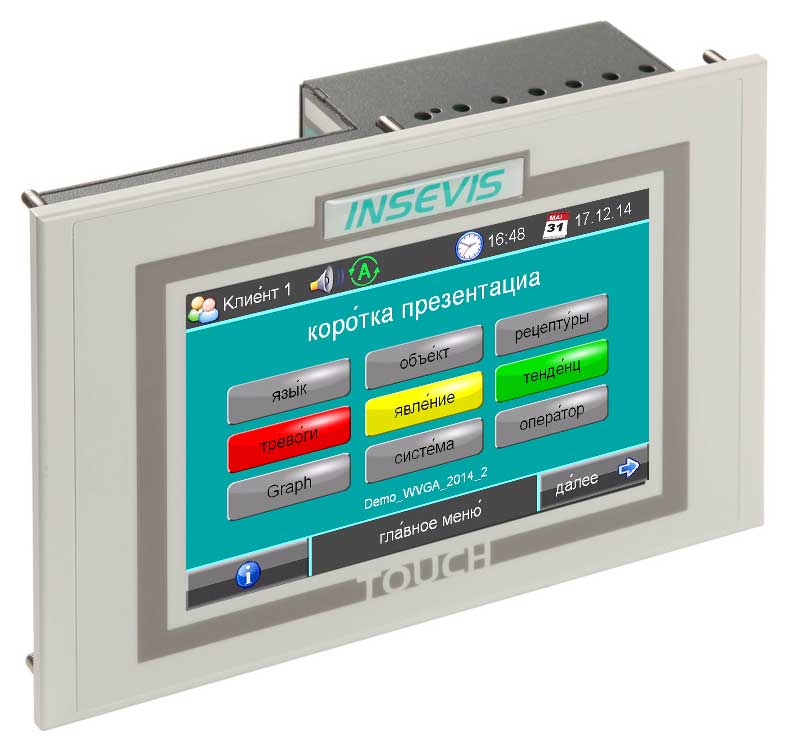

✅ The HMI710T is S7-HMI 7″ with 800×480 px and 4-way VNC server.
This S7-HMI with a 7" diagonal and WVGA (800x480 px) resolution is the more powerful counterpart to the old 7" panel HMI700P. Ideal for medium to large applications, because the range of functions is enormous. The modern 16:9 format leaves space for many objects in one mask and is unbeatable for trend displays. A free 4-way VNC server and extensive trend management are integrated. The EDGE version of the HMI710T with OPC UA, MQTT, NodeRED, openVPN and the automatically generated web visualization.

• Panel-PLC with TFT-color touch display 7″ TFT (800×480 px)
• Ethernet as 2-port switch S7-connection (Put/Get)
• IP-addresses in HMI-BIOS to communicate with Siemens-CPUs
• Micro-SD slot for Micro-SD-cards up to 8GB
• Status LEDs for Power, Battery, Error, Run
• Inserting stripes for Logo and ident (customized adaption possible)
• Scope of delivery: mounting set with technical information / instruction

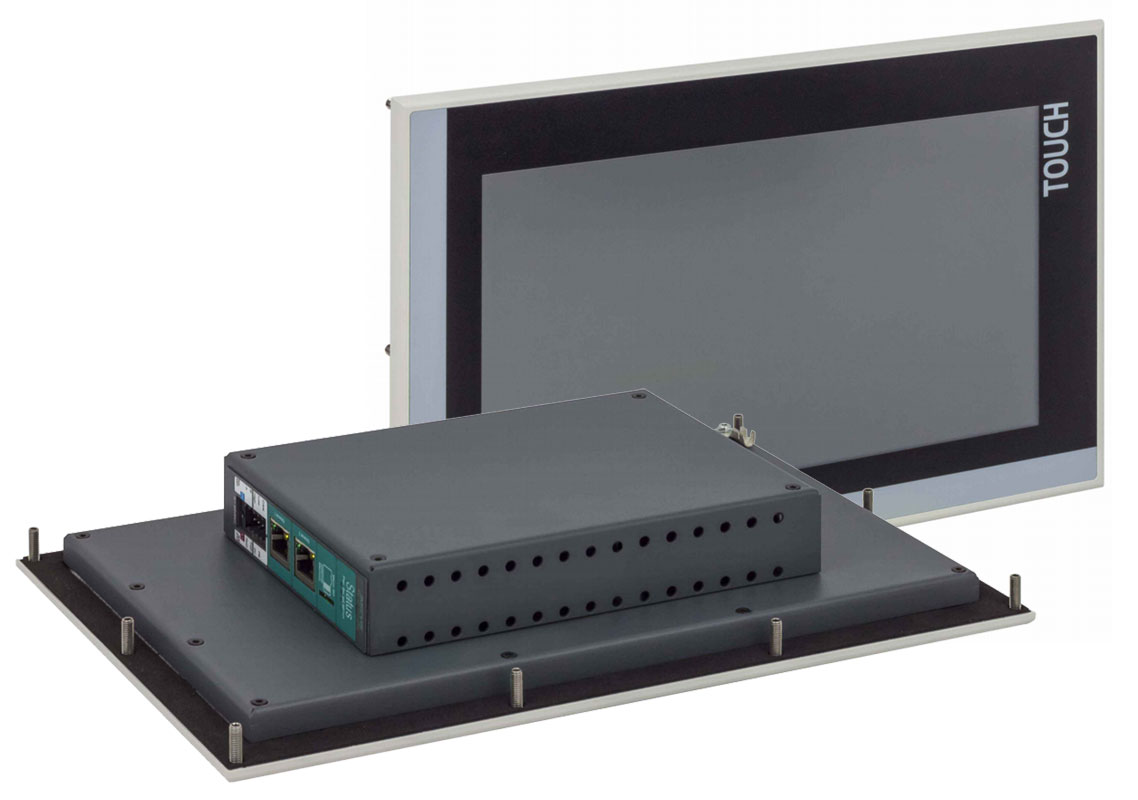

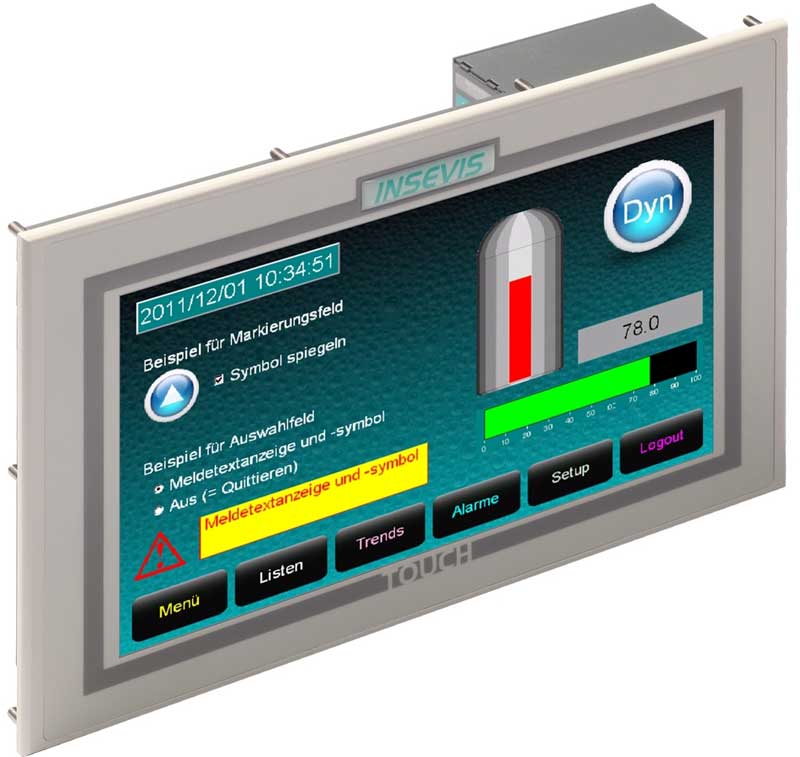

✅ The HMI710T is S7-HMI 10.1″ with 1024×600 px and 4-way VNC server.
This S7 HMI with a 10.1" diagonal has a great resolution and brilliance. Ideal for medium-sized applications because the range of functions is enormous. The modern 16:9 format leaves plenty of space for objects in a mask at 10.1". A 4-way VNC server is already integrated in this S7 HMI, as are many other extensive functions. The EDGE version of the HMI1010T with OPC UA, MQTT, NodeRED, openVPN and automatically generated web visualization.

• Panel-PLC with TFT-color touch display 10.1″ TFT (1024×600 px)
• Ethernet as 2-port switch S7-connection (Put/Get)
• IP-addresses in HMI-BIOS to communicate with Siemens-CPUs
• Micro-SD slot for Micro-SD-cards up to 8GB
• Status LEDs for Power, Battery, Error, Run
• Inserting stripes for Logo and ident (customized adaption possible)
• Scope of delivery: mounting set with technical information / instruction

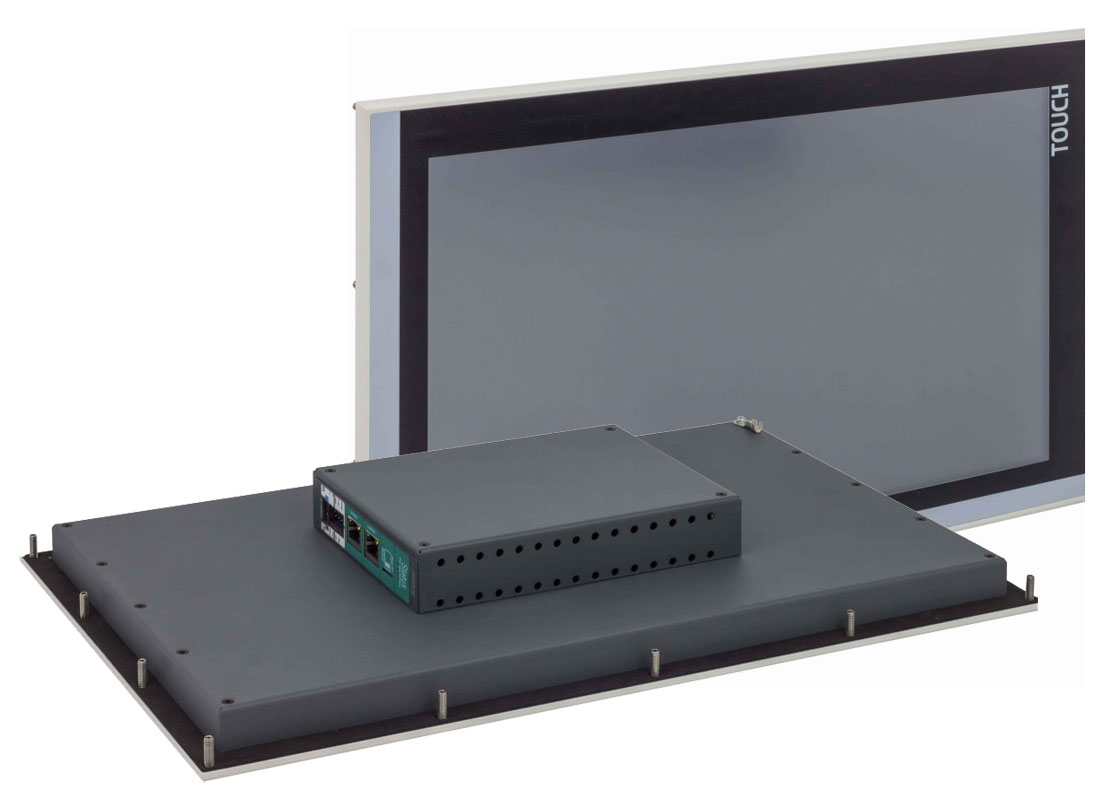

✅ The HMI1560T is S7-HMI 15.6″ with 1366×768 px and 4-way VNC server.
The currently largest INSEVIS panel with a 15.6" diagonal has the highest resolution at INSEVIS. Nevertheless, it scores with particularly fast screen changes and an exceptional price/performance ratio. WinCCflexible users have no problem with the configuration, because the VisuStage is similar to use and often easier. Up to 5 panels can be connected to an INSEVIS S7 CPU via Ethernet (S7 communication). The large diagonal leaves space for a particularly large number of objects in a mask and could already replace small IPCs. No restriction on tags/objects so that you can ensure market success and profitability. And of course our integrated 4-way VNC server. The EDGE version of the HMI1560T with OPC UA, MQTT, NodeRED, openVPN and automatically generated web visualization.

• Panel-PLC with TFT-color touch display 15.6″ TFT (1366×768 px)
• Ethernet as 2-port switch S7-connection (Put/Get)
• IP-addresses in HMI-BIOS to communicate with Siemens-CPUs
• Micro-SD slot for Micro-SD-cards up to 8GB
• Status LEDs for Power, Battery, Error, Run
• Inserting stripes for Logo and ident (customized adaption possible)
• Scope of delivery: mounting set with technical information / instruction
