INSEVIS products expand and simplify the world of S7. Our S7 product families are proof of how well innovative system solutions and German workmanship are combined with a competitive price. The world's most compact S7 touch panel PLCs with onboard IOs and the IIoT-capable EDGE HMIs with MQTT, OPC UA, NodeRED and an automatically created web visualization. The functions are described in detail in manuals with example programs. Demo programs and videos are also available for you to download. Customized logos can be implemented on front- or rear side easily. Operating systems with custom logos are available as well.
Product family Peripherals - flexibly scalable - onboard and remote. All INSEVIS peripheral modules can be used onboard (in the 3, 7 or 11 free peripheral slots of the INSEVIS PLCs) and as an extension also decentrally (in the peripheral slots of the head stations / peripheral blocks). With ConfigStage, the peripheral modules are configured via drag and drop, e.g. whether a bit is operated as an input or output, an analog channel should be an input or output with current or voltage or whether 2, 3 or 4 sensors are used. All modules can be labeled according to customer specifications.
👆 We invite to co-operation engineering companies and system integrators who have the ability, ambition and resources to implement projects based on INSEVIS PLCs.

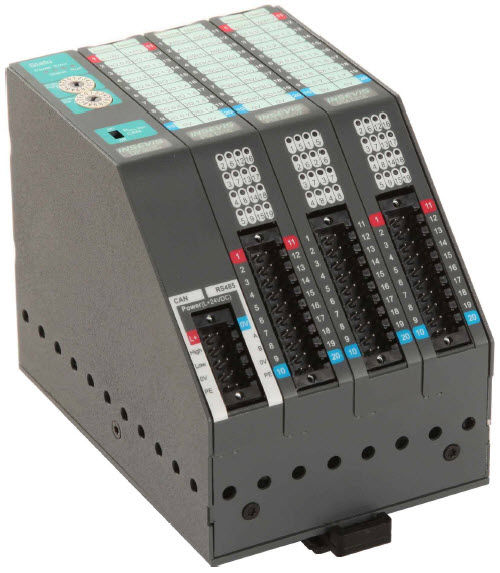

✅ The DP303C is a head station for 3 peripheral slots .
The easiest way for decentralized expansion. Absolutely easy to set up S7 peripherals using a decentralized peripheral carrier with 3 peripheral slots. Connected via CAN, but no CAN knowledge is required for configuration. Set the node number on 2 rotary switches on the head station and enter this number in the ConfigStage, done. Enter the start addresses and then the software automatically assigns the address, including a plausibility test and an overview of the address data of the individual I/Os. Up to 127 units can be controlled by one INSEVIS S7 CPU. Robust, EMC-proof metal housing with customer logo on request for the 35mm top hat rail.
✅ The DP307C is a head station for 7 peripheral slots .
The easiest way for decentralized expansion. Absolutely easy to set up S7 peripherals using a decentralized peripheral carrier with 7 peripheral slots. Connected via CAN, but no CAN knowledge is required for configuration. Set the node number on 2 rotary switches on the head station and enter this number in the ConfigStage, done. Enter the start addresses and then the software automatically assigns the address, including a plausibility test and an overview of the address data of the individual I/Os. Up to 127 units can be controlled by one INSEVIS S7 CPU. Robust, EMC-proof metal housing with customer logo on request for the 35mm top hat rail.

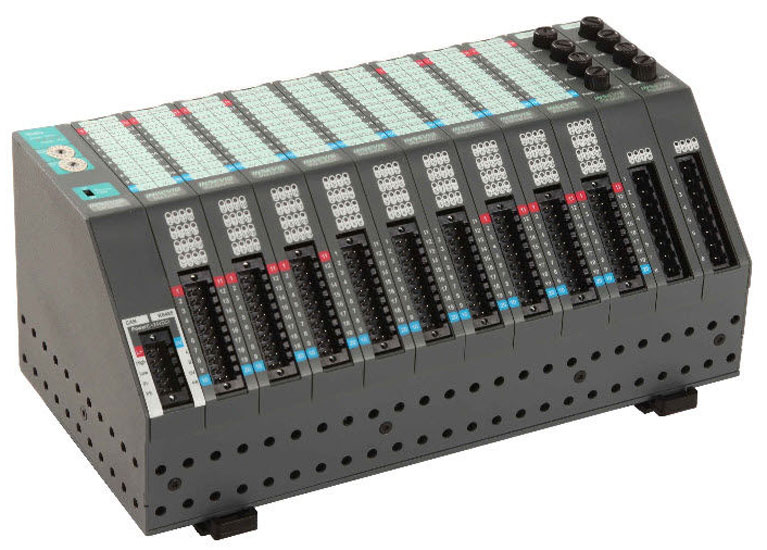

✅ The DP311C is a head station for 11 peripheral slots .
The easiest way for decentralized expansion. Absolutely easy to set up S7 peripherals using a decentralized peripheral carrier with 11 peripheral slots. Connected via CAN, but no CAN knowledge is required for configuration. Set the node number on 2 rotary switches on the head station and enter this number in the ConfigStage, done. Enter the start addresses and then the software automatically assigns the address, including a plausibility test and an overview of the address data of the individual I/Os. Up to 127 units can be controlled by one INSEVIS S7 CPU. Robust, EMC-proof metal housing with customer logo on request for the 35mm top hat rail.

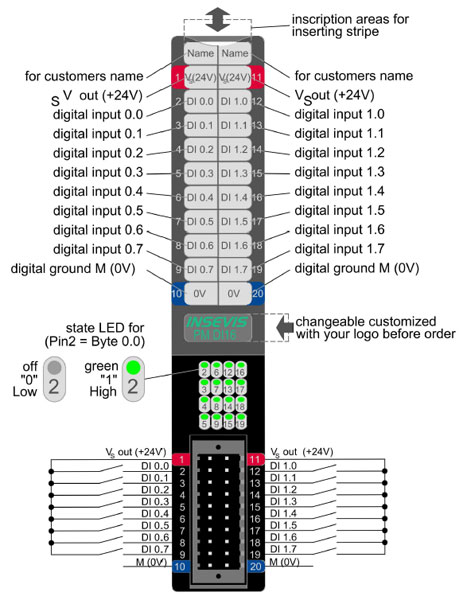

✅ Peripheral module 16 digital inputs 24V.
Designed for installation either directly into the PLC or into a head peripheral station. Compact design with a width of 20 mm. Green diagnostic LED for each input. Insertion stripe with description field for every signal. Cage-clamp connector with bolt flanges on side.

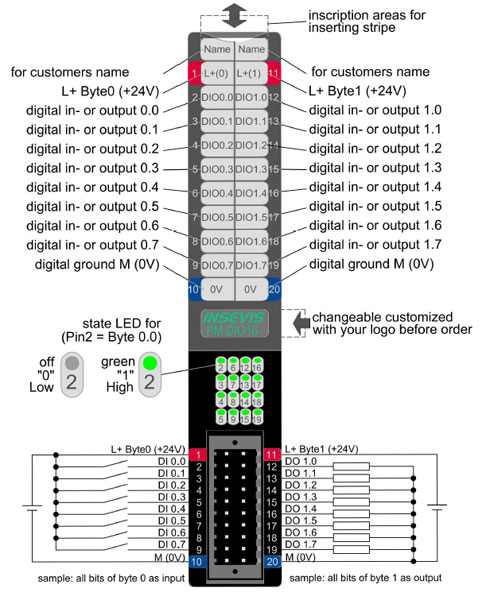

✅ Peripheral module 16 digital inputs/outputs 24V.
Designed for installation either directly into the PLC or into a head peripheral station. Compact design with a width of 20 mm. Green diagnostic LED for each input. Insertion stripe with description field for every signal. Cage-clamp connector with bolt flanges on side.

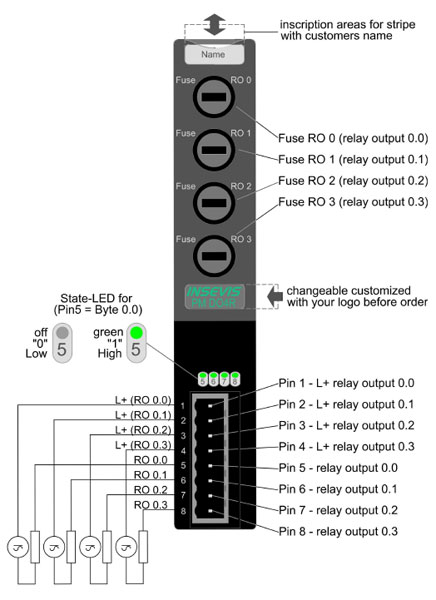

✅ Peripheral module 4 relay outputs 230V.
Designed for installation either directly into the PLC or into a head peripheral station. Compact design with a width of 20 mm. Green diagnostic LED for each input. Insertion stripe with description field for every signal. Cage-clamp connector with bolt flanges on side.

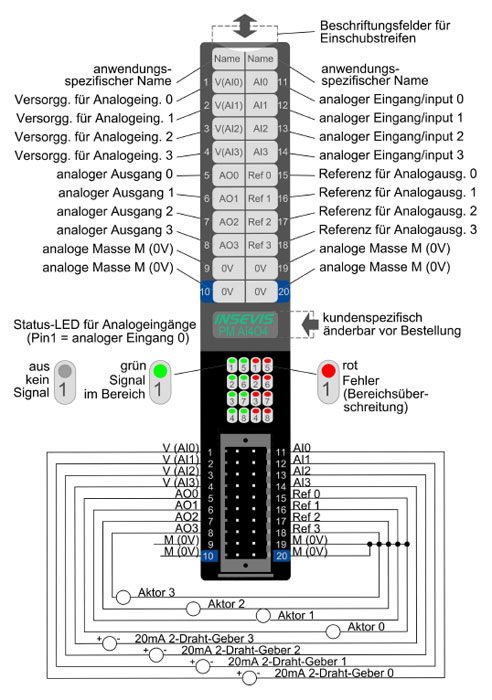

✅ Peripheral analog U/I module 4x AI and 4x AO.
Designed for installation either directly into the PLC or into a head peripheral station. Compact design with a width of 20 mm. Green diagnostic LEDfor each input. Insertion stripe with description field for every signal. Cage-clamp connector with bolt flanges on side. The simple setting of the measurement and address ranges of the S7 analog peripherals in the ConfigStage is just one advantage of the analog modules from INSEVIS. Each individual analog module has its own special functions. The settling from 12 to 16 bit resolution (with sign) or the connection selection of the multi-wire technology including a wide variety of measuring sensors. Of course you can use your Siemens PID control blocks for INSEVIS analog processing.

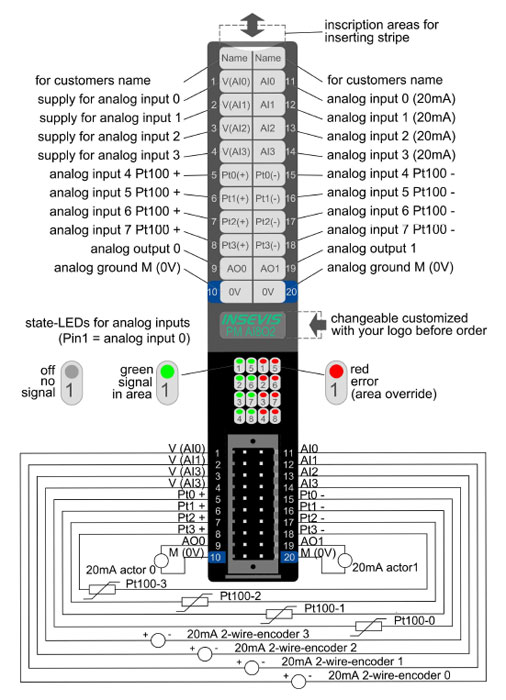

✅ Peripheral analog U/I module 8x AI and 2x AO PT/I.
Designed for installation either directly into the PLC or into a head peripheral station. Compact design with a width of 20 mm. Green diagnostic LEDfor each input. Insertion stripe with description field for every signal. Cage-clamp connector with bolt flanges on side. The simple setting of the measurement and address ranges of the S7 analog peripherals in the ConfigStage is just one advantage of the analog modules from INSEVIS. Each individual analog module has its own special functions. The settling from 12 to 16 bit resolution (with sign) or the connection selection of the multi-wire technology including a wide variety of measuring sensors. Of course you can use your Siemens PID control blocks for INSEVIS analog processing.

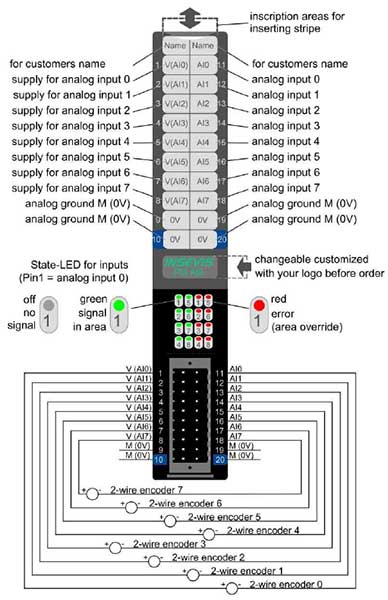

✅ Peripheral module 8 analog inputs U/I.
Designed for installation either directly into the PLC or into a head peripheral station. Compact design with a width of 20 mm. Green diagnostic LEDfor each input. Insertion stripe with description field for every signal. Cage-clamp connector with bolt flanges on side. The simple setting of the measurement and address ranges of the S7 analog peripherals in the ConfigStage is just one advantage of the analog modules from INSEVIS. Each individual analog module has its own special functions. The settling from 12 to 16 bit resolution (with sign) or the connection selection of the multi-wire technology including a wide variety of measuring sensors. Of course you can use your Siemens PID control blocks for INSEVIS analog processing.

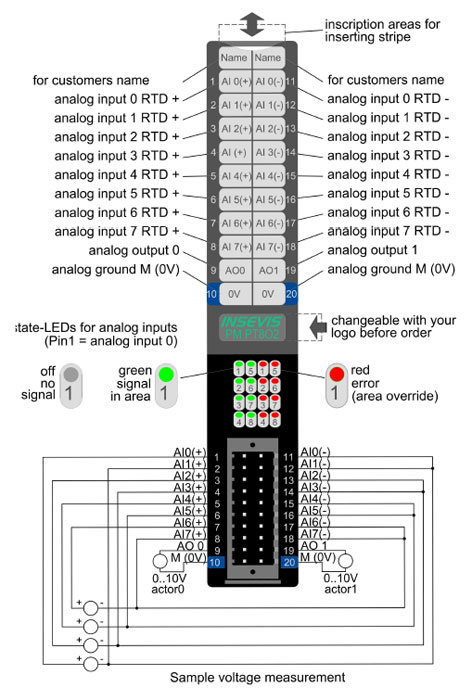

✅ Peripheral module 8 analog inputs to be configured: PT100, PT1000, NI100, NI1000, KTY81, 0...400 mV, 0...1V and 2 analog outputs (0,5 ...10V).
Designed for installation either directly into the PLC or into a head peripheral station. Compact design with a width of 20 mm. Green diagnostic LEDfor each input. Insertion stripe with description field for every signal. Cage-clamp connector with bolt flanges on side. The simple setting of the measurement and address ranges of the S7 analog peripherals in the ConfigStage is just one advantage of the analog modules from INSEVIS. Each individual analog module has its own special functions. The settling from 12 to 16 bit resolution (with sign) or the connection selection of the multi-wire technology including a wide variety of measuring sensors. Of course you can use your Siemens PID control blocks for INSEVIS analog processing.

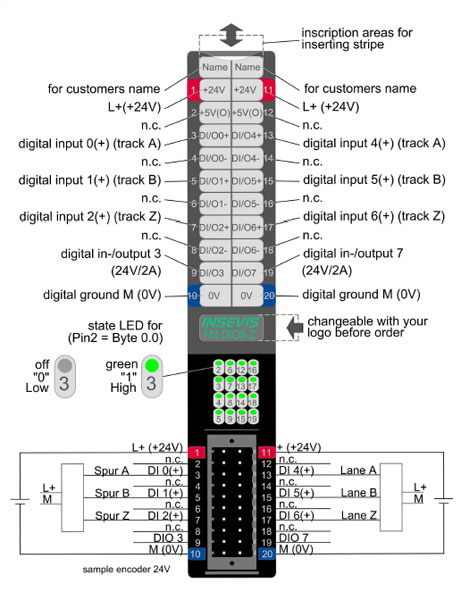

✅ Peripheral function modules for fast counters or energy measurement.
Compact periphery module with 6 dedicated input channels and 2 fast back ¬readable outputs 24V/2A in 3 hardware versions:
6 digital inputs 24V and 2 digital back-readable outputs (PM-DIO8Z-24V-03)
6 digital back-readable outputs 5V and 2 digital back-readable outputs (PM-DIO8Z-5V-03)
6 bidirectional channels according RS485 / RS4222 digital back readable outputs (PM-DIO8Z-422-03)

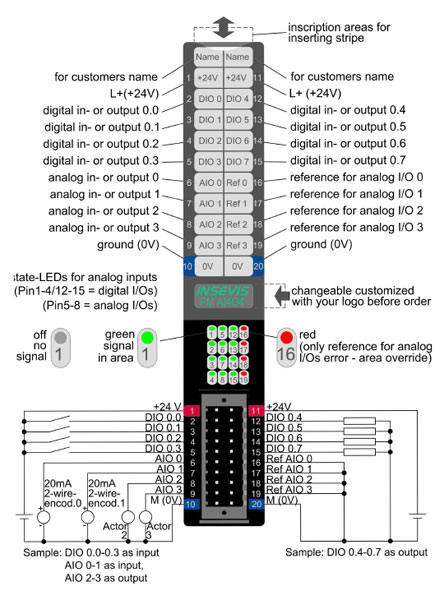

✅ Peripheral module 8 digital I/O (counter) + 4 analog I/O.
The simple setting of the measurement and address ranges of the S7 analog peripherals in the ConfigStage is just one advantage of the analog modules from INSEVIS. Each individual analog module has its own special functions. The settling from 12 to 16 bit resolution (with sign) or the connection selection of the multi-wire technology including a wide variety of measuring sensors. Always labelable with your logo, always precise and always EMC-safe under the powder-coated rear panel of the INSEVIS controllers or the decentralized blocks with S7 peripherals. Of course you can use your Siemens PID control blocks for INSEVIS analog processing.

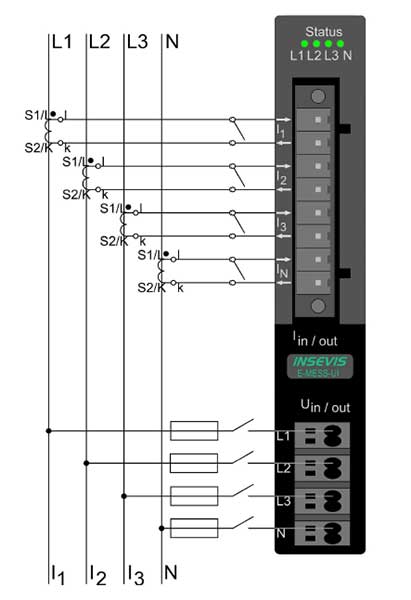

✅ The E-Mess UI function block (3 voltage transformer inputs and 4 current transformer inputs for L1-L2-L3, N).
It is a compact peripheral module with voltage and current inputs for measuring energy consumption in a 3-phase network. This module measures current, voltage and phase angle. The internal controller provides the calculation of active and reactive power as well as cos f power factor and provides all values for the process display as well as the final values (balance).
