Combined motor start and braking devices

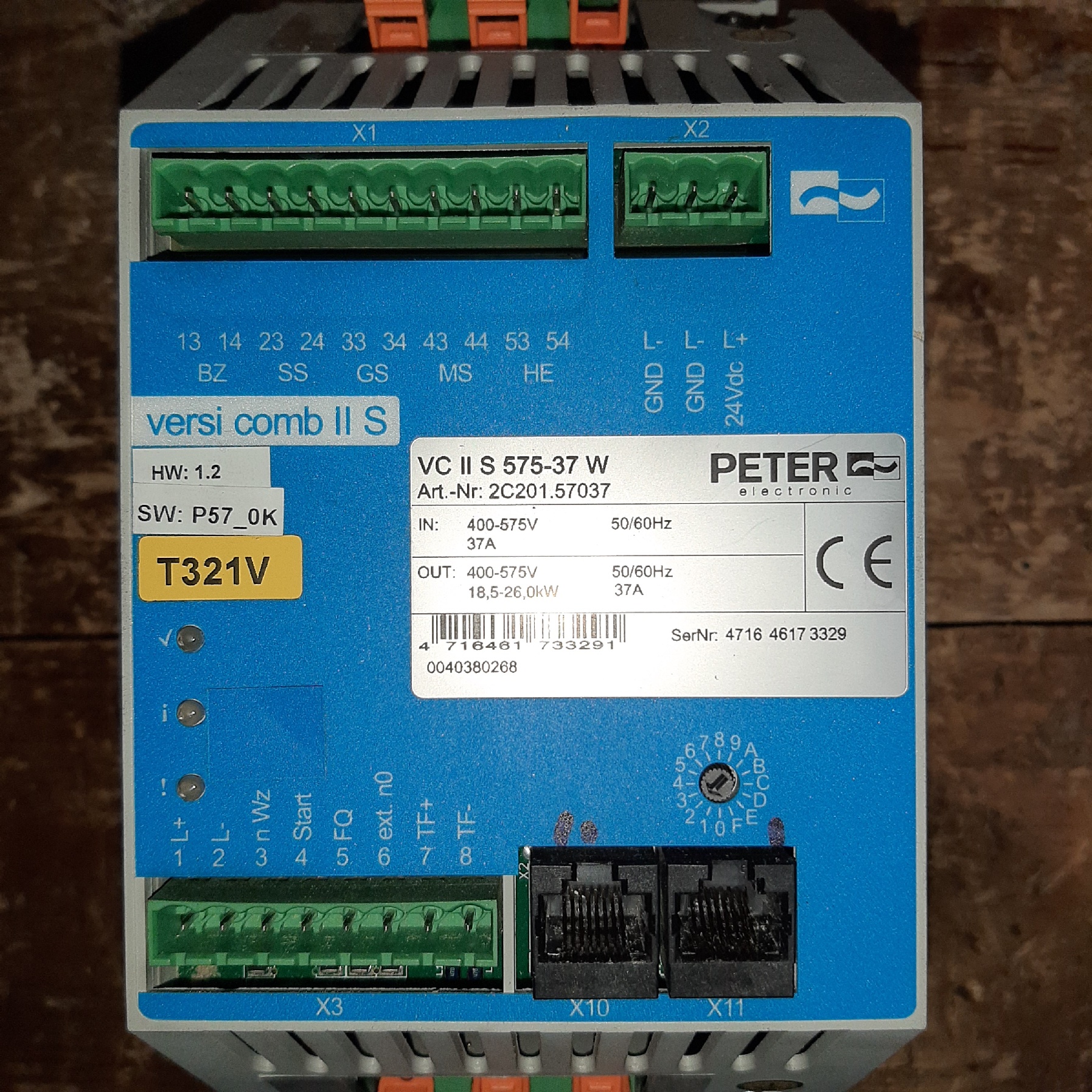

The VersiComb II family of combined soft-start and braking devices are designed to provide smooth start-up and braking of a three-phase motor with two-phase control. They provide inrush and braking current limitation, real-time process control that reduces electrical and mechanical stresses, thus extending the life of the motor and its drive. They work with standard AC induction motors.

• Shorting relay integrated
• Reducing inrush current peaks
• DC braking via thyristor bridge
• Brake protection integrated
• Motor stationary detection
• Motor stationary time control
• Microcontroller control
• Compatible with all types of asynchronous motors
• Device for mounting on a 35 mm rail
• Protection degree IP20
• Corresponds to category 2 according to 954-1
• Potential-free control input for soft start
• Potential-free control input for braking
• Regulation of starting and braking currents
• Adjustable starting torque
• Settable start time
• Setting braking current
• Protective motor blocking during braking
• Case temperature control
• Supply voltage 200-480V (with auxiliary control voltage 24V or 230V)

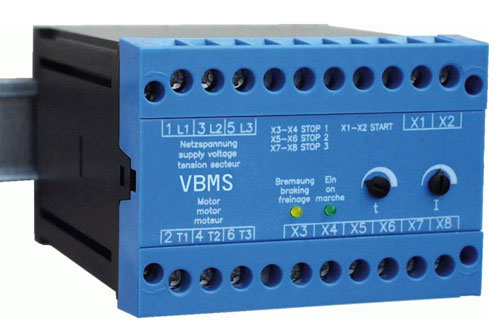

The VBMS series of soft starters series is equipped with comprehensive functions for soft start, motor and system protection and is therefore and system protection, making them ideal for a wide range of motors and applications. The favoured areas of application include pumps and fans.

• simple motor control with only a few elements
• motor contactor and DC-brake in a single device
• suitable for all asynchrohnous motors
• controlled by microcontroller
• easy mounting, also for retrofitting into existing plants
• motor contactor with contact gap 3 mm, utilization category AC-3
• operator’s controls physically separated from load
• for snap-mounting onto 35mm top-hat rail
• degree of protection IP 20
• intermateable with BRMS
