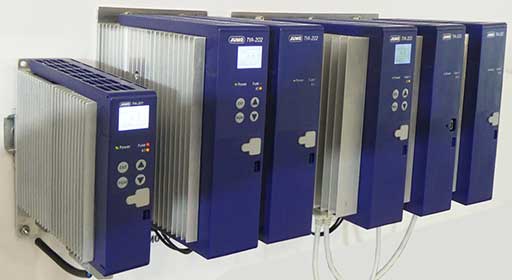

Thyristor Power Controller TYA

Thyristor power controllers are used where larger resistive and inductive loads have to be switched (e.g. in industrial furnace construction and plastics processing). It consists of 2 antiparallel switched thyristors, the insulated heat sink, and the control electronics.

• Subordinate: control loop U, U² (standard), I, I², P (optional)
• Load type: Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave)
• Load voltage: 24 V, 42 V, 115 V, 230 V, 400 V, 460 V, 500 V
• Load currents: 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
• Approval: cULus
• Special features: Current limiting, mains load optimization, dual energy management, "Teach-In" function (partial load failure detection), "r-control" (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, "True RMS" (root mean square)
• Control voltage: Control voltage = load voltage
• Operating modes: Phase-angle control, burst-firing operation; half-wave control; SSR logical operation; fast logical operation, alpha start; soft start
• Ambient temperature: -20 to +70°C
• System interfaces: Modbus, PROFIBUS DP, system bus JUMO mTRON T, EtherCAT, PROFINET
• Configuration: Setup/USB-powered; plain text display on the device

Stock models with short delivery times:

Software:

• GSD-Generator JUMO 144.01.xx/1.xx, 00432892
• Setup JUMO TYA-201/202/203 709061/62/63, 00544869
• EtherCAT Slave Information (ESI), 00703297
• JUMO TYA PROFINET Description file, 00709880

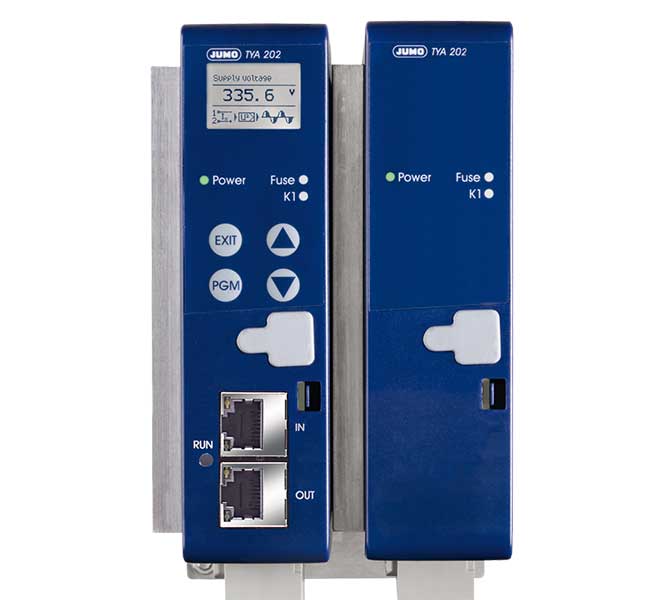

Three-phase thyristor power controller in three-phase economy circuit (two of three phase). The JUMO TYA 202 represents the systematic further development of the JUMO power controller technology. It switches resistive inductive loads using a three-phase economy circuit in star-delta three-phase operation. It is used where larger resistive and inductive loads have to be switched.

• Subordinate: control loop U, U² (standard), I, I², P (optional)
• Load type: Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave)
• Load voltage: 24 V, 42 V, 115 V, 230 V, 400 V, 460 V, 500 V
• Load currents: 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
• Approval: cULus
• Special features: Economy circuit, mains load optimization, dual energy management, "Teach-In" function (partial load failure detection), "r-control" (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, "True RMS" (root mean square)
• Control voltage: Control voltage = load voltage
• Operating modes: Burst-firing operation, SSR logical operation, fast logical operation, alpha start, soft start
• Ambient temperature: -20 to +70°C
• System interfaces: Modbus, PROFIBUS DP, system bus JUMO mTRON T, PROFINET, EtherCAT
• Configuration: Setup/USB-powered; plain text display on the device

Stock models with short delivery times:

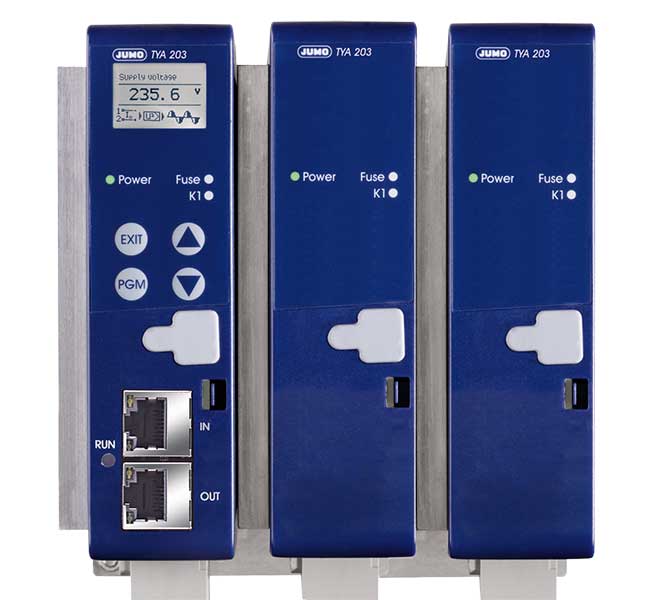

Three-phase thyristor power controller in three-phase economy circuit. The JUMO TYA 202 represents the systematic further development of the JUMO power controller technology. It switches resistive inductive loads using a three-phase economy circuit in star-delta three-phase operation. It is used where larger resistive and inductive loads have to be switched.

• Subordinate: control loop U, U² (standard), I, I², P (optional)
• Load type: Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave)
• Load voltage: 24 V, 42 V, 115 V, 230 V, 400 V, 460 V, 500 V
• Load currents: 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
• Approval: cULus
• Special features: Economy circuit, mains load optimization, dual energy management, "Teach-In" function (partial load failure detection), "r-control" (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, "True RMS" (root mean square)
• Control voltage: Control voltage = load voltage
• Operating modes: Burst-firing operation, SSR logical operation, fast logical operation, alpha start, soft start
• Ambient temperature: -20 to +70°C
• System interfaces: Modbus, PROFIBUS DP, system bus JUMO mTRON T, PROFINET, EtherCAT
• Configuration: Setup/USB-powered; plain text display on the device

Stock models with short delivery times:

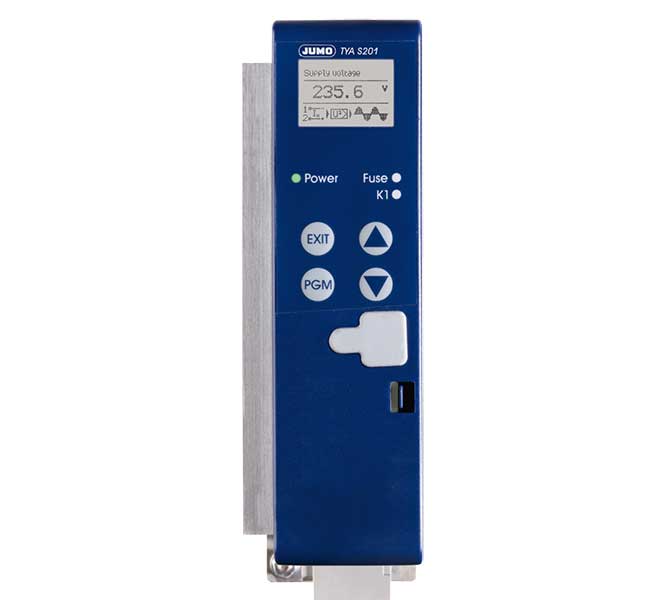

Single-phase thyristor power controller for burst-firing operation. The JUMO TYA S201 represents a cost-optimized version of the JUMO TYA 201 and is also used to control larger resistive and inductive loads. This is carried out using pulse group control. Areas of application include industrial furnace construction and plastics processing.

• Load type: Resistive load, resistive inductive load; in the case of transformer loads, the nominal induction of 1.2 tesla must not be exceeded (value is 1.45 T in the case of mains overvoltage).
• Load voltage: 230 V, 400 V, 460 V, 500 V
• Load currents: 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
• Approval: cULus
• Special features: Soft start function, network load optimization through dual energy management, load monitoring for detection of partial load failure or load short circuit "Teach-In", integrated diagnosis system, device configuration without auxiliary voltage, LCD display with info line
• Control voltage: Control voltage = load voltage
• Operating modes: Phase-angle control, burst-firing operation; half-wave control; SSR logical operation; fast logical operation, alpha start; soft start
• Ambient temperature: -20 to +70°C
• System interfaces: RS422/485, PROFINET
• Configuration: Setup/USB-powered; plain text display on the device

Stock models with short delivery times:

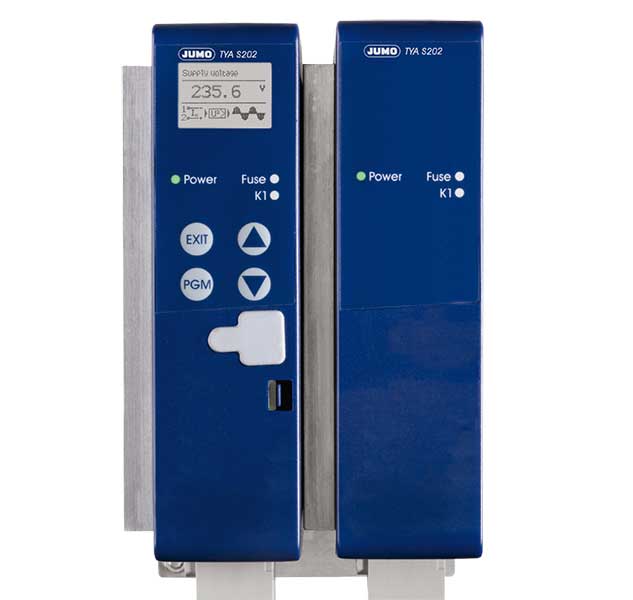

Three-phase thyristor power controller in three-phase economy circuit (two of three phase). The JUMO TYA S202 represents a cost-optimized version of the JUMO TYA 202 and is also used to control larger resistive and inductive loads. This is carried out using pulse group control. Areas of application include industrial furnace construction and plastics processing.

• Subordinate: control loop U, U² (standard), I, I², P (optional)
• Load type: Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave)
• Load voltage: 400 V, 460 V, 500 V
• Load currents: 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
• Approval: cULus
• Special features: Economy circuit, mains load optimization, dual energy management, "Teach-In" function (partial load failure detection), "r-control" (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, "True RMS" (root mean square)
• Control voltage: Control voltage = load voltage
• Operating modes: Phase-angle control, burst-firing operation; half-wave control; SSR logical operation; fast logical operation, alpha start; soft start
• Ambient temperature: -20 to +70°C
• System interfaces: RS422/485, PROFINET
• Configuration: Setup/USB-powered; plain text display on the device

Stock models with short delivery times:
